SPECIFICATIONS
Application: Computer,Multimedia,Monitor,Projector,Television,TV box,Camera,Cameras/OBS live streaming/Projector/Home game/outdoor shootiing
Brand: VRRIIS
Brand Name: VNNBBS
Certification: CE,FCC,RoHS
Connector A: HDMI-Compatible
Connector B: HDMI-Compatible
Delay: 0.05s
Feature: None,Plug and play
Gender: Male
Hign-concerned Chemical: None
Material: PC+ABS+Metal
Model Number: WL082
Origin: Mainland China
Outer Diameter: 117*64*23
Package: Yes,Carton Box
Power supply: Mobile power supply , 5V/2A Type-C Power; NP-F970/750/550 External Battery(Note:Battery Not Included)
Receiver support output: 1080P@60Hz
Shielding: Non-Shielded
Support: 1 Send 5 Receive
Technology: H.265
Transmission distance: 1300ft/400m
Transmitter Support Input: Maximum 4K@30Hz
Type: HDMI-Compatible Cables
New Product

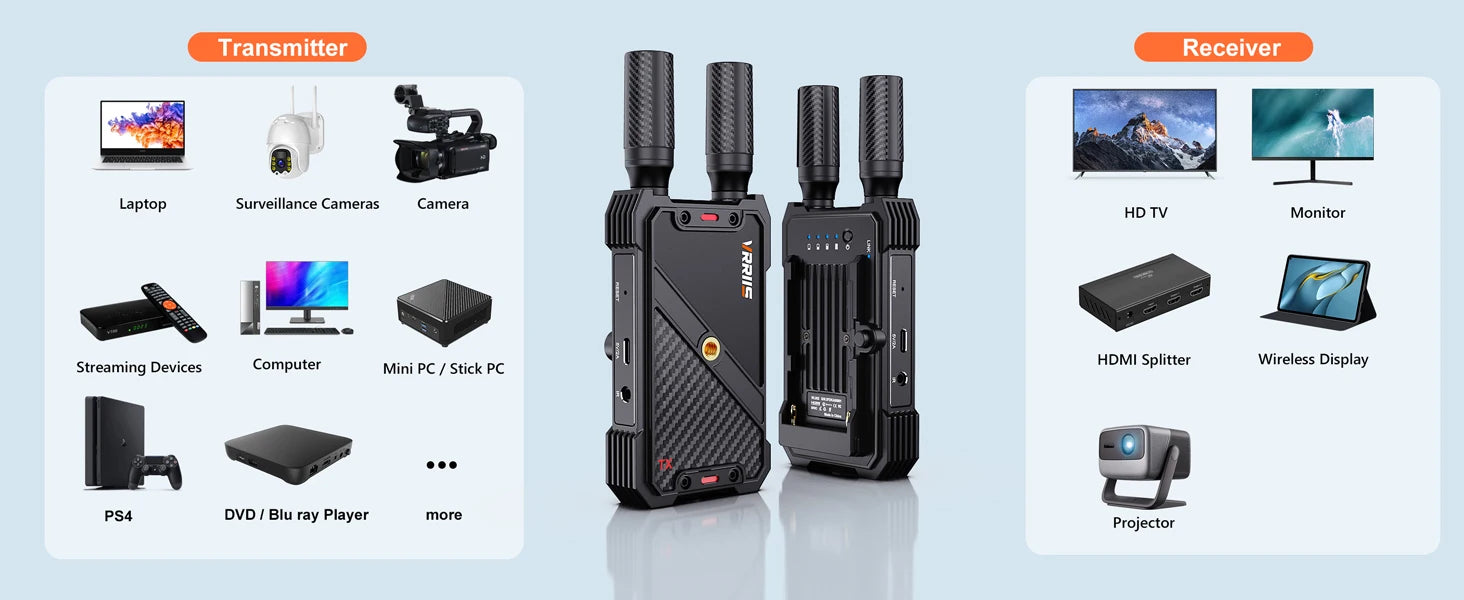

-WL082 transmitter-receiver upgraded with H.265 decoding, you can easily project the screen of tablet PC, laptop, PC computer, PS4 game console, set-top box, etc. to a large screen such as projector, TV, monitor, etc. The transmitter side supports the maximum input of 4K@30HZ Ultra HD video, conference presentations, multi-media teaching, watching TV, playing games and so on.
-WL082 is designed and developed based on the wireless transmission of HDMI interface, which transmits 1080P@60Hz video, pictures, documents from the transmitter to the receiver via 5G transmission channel to display on the big screen or TV. With the efficient signal quality of this device, you can enjoy clear video transmission.

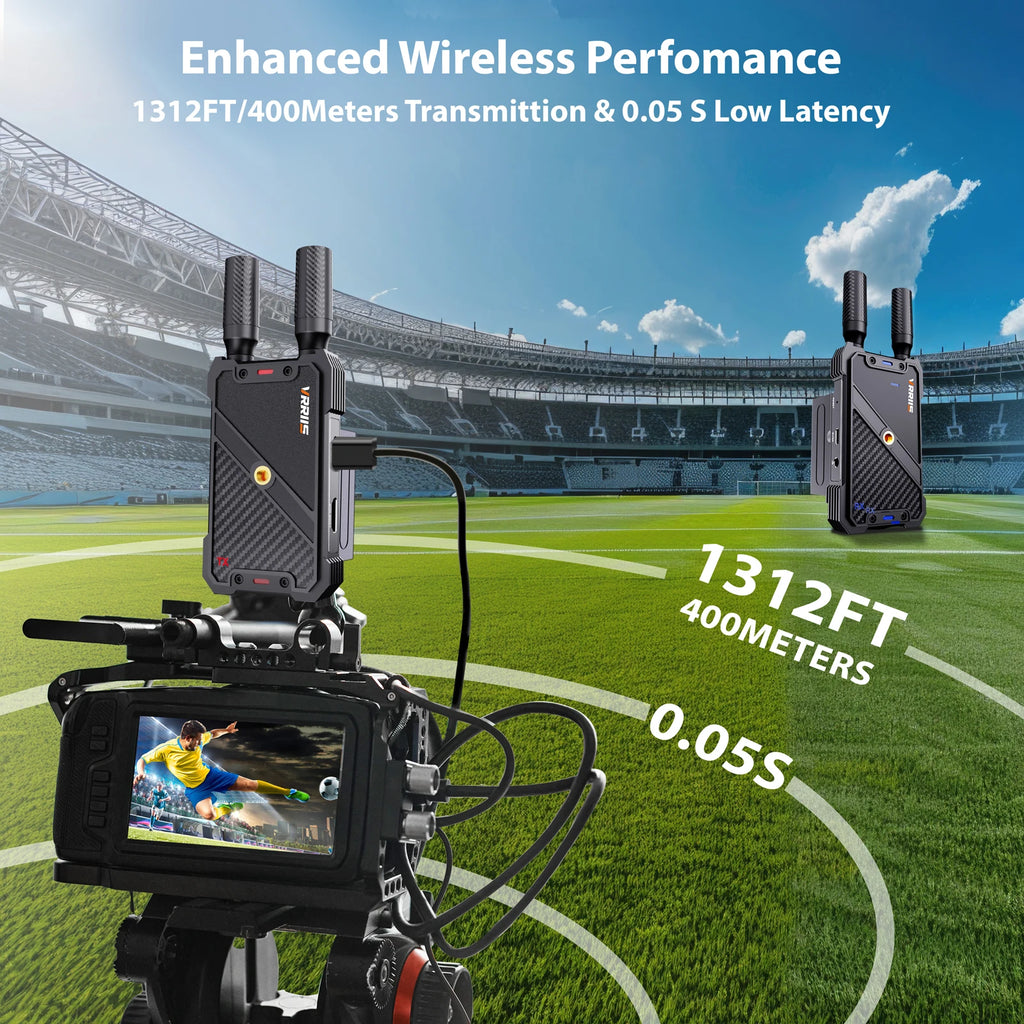

-Long transmission distance. When transmitting with 1 transmitter and 1 receiver, the transmission distance is up to 400 meters/1300 feet in an open and unobstructed environment. (Note: Distance becomes shorter as the number of receivers increases)
Ultra-low latency: Ultra-low latency of 0.05 seconds for a very smooth connection and low operating temperature. No noticeable sense of latency. Better and clearer picture quality. Bring you more silky visual effect.

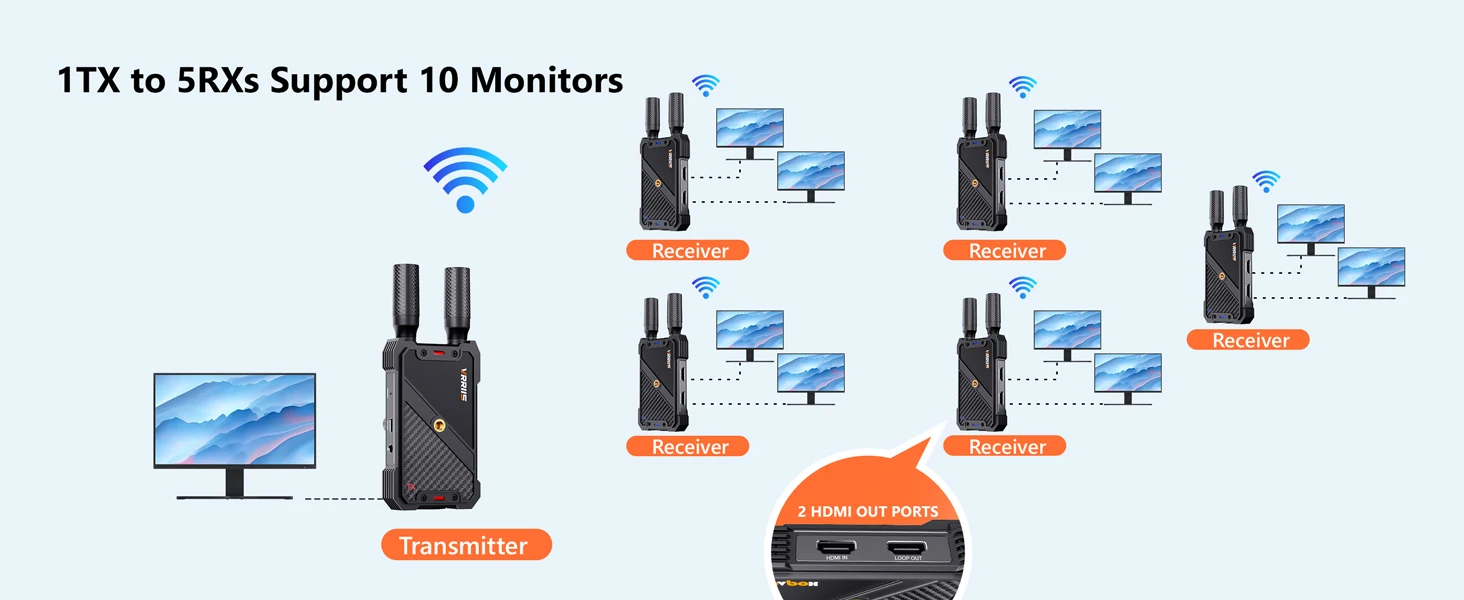

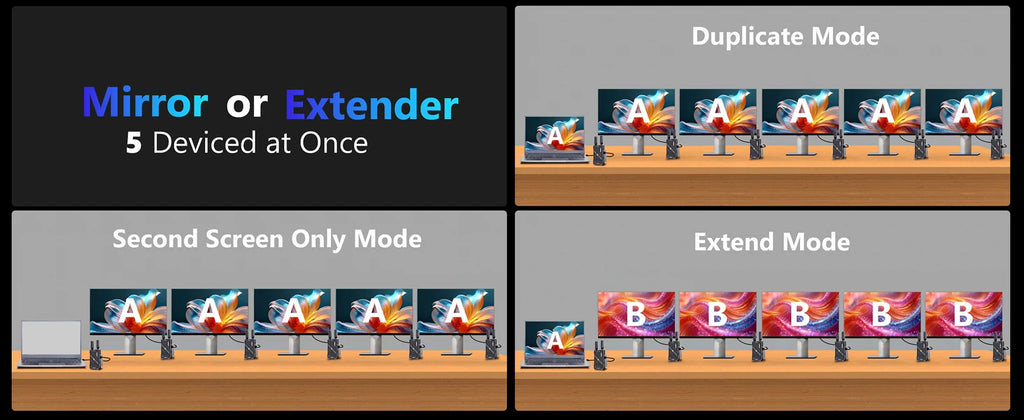

-Supports 1 transmitter to 5 receivers. The product is newly upgraded, breaking the previous rule of 1TX to 4RX. You can use up to 1 transmitter to 5 receivers as needed.

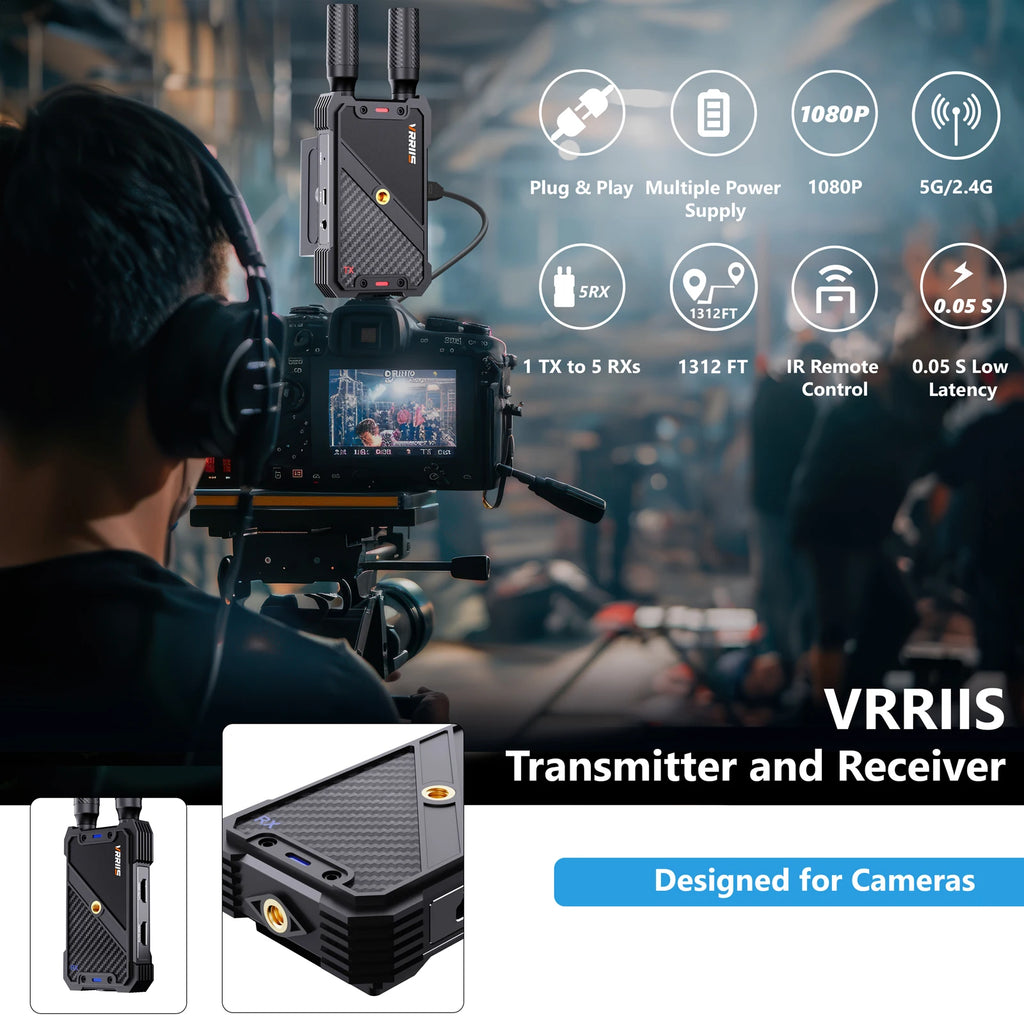

-Wide range of uses. Suitable for a variety of environments, from home gaming to outdoor filming, ensure your devices stay connected without wires.
-Plug and play. Transmitters and receivers are factory paired, allowing you to connect and use the product as soon as you receive it. No need to use any APP or program settings. (Note: Each new receiver needs to be paired according to the instruction manual, very simple)

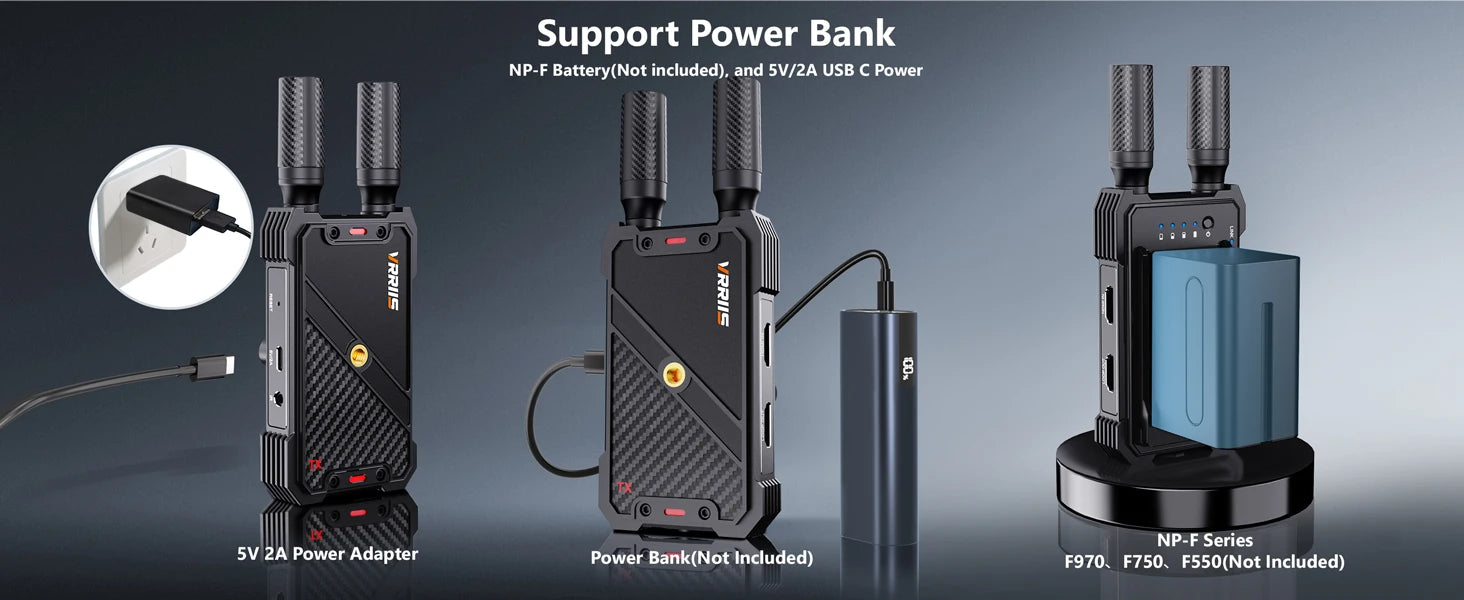

-Multiple power supply options. The product supports three power supply methods, mobile power, 5V/2A Type-C power; NP-F970/750/550 external battery (Note: Battery is not included). Makes it more convenient and easy to use when you are out and about.
1TX to 5RX transmission distance
1TX to 1RX: 400 meters/1300 feet
1TX to 2RX:200 meters/656 feet
1TX to 3RX:150 meters/492 feet
1TX to 4RX:120 meters/393 feet
1TX to 5RX:80 meters/262 feet
Note: This product is detected in an open environment, different use environment or signal interference will result in shorter distance.
Resolution supported
1080p@60Hz/1080p@50Hz / 1080p@24Hz / 1080p@25Hz / 1080p@30Hz / 720p@50Hz / 720p@60Hz

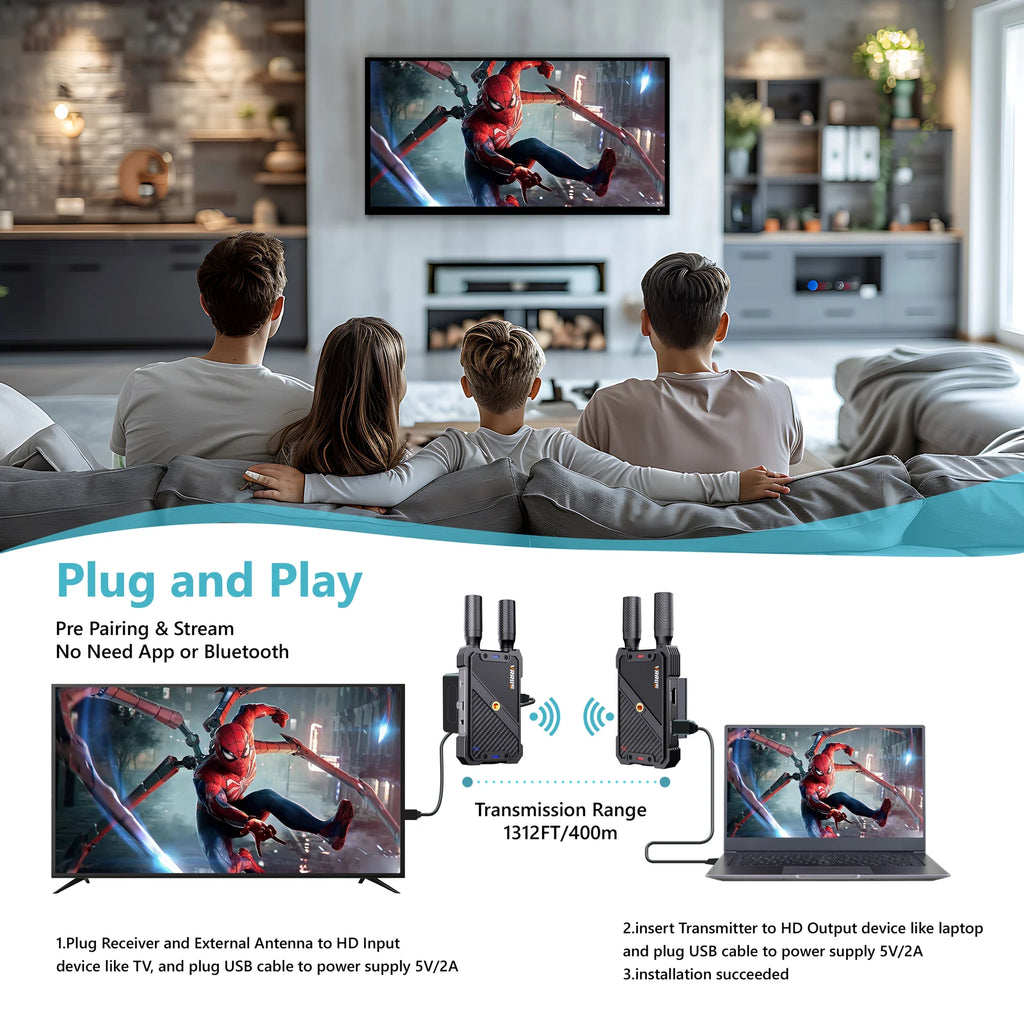

How is it used?
1.Install the antennas to TX and RX.
2.Power up RX by USB cable or battery, then connect it to the monitor with HDMI cable.
3. Power up TX by USB cable or battery, then connect it to the signal source with HDMI cable.It will cast the screen after a few seconds.

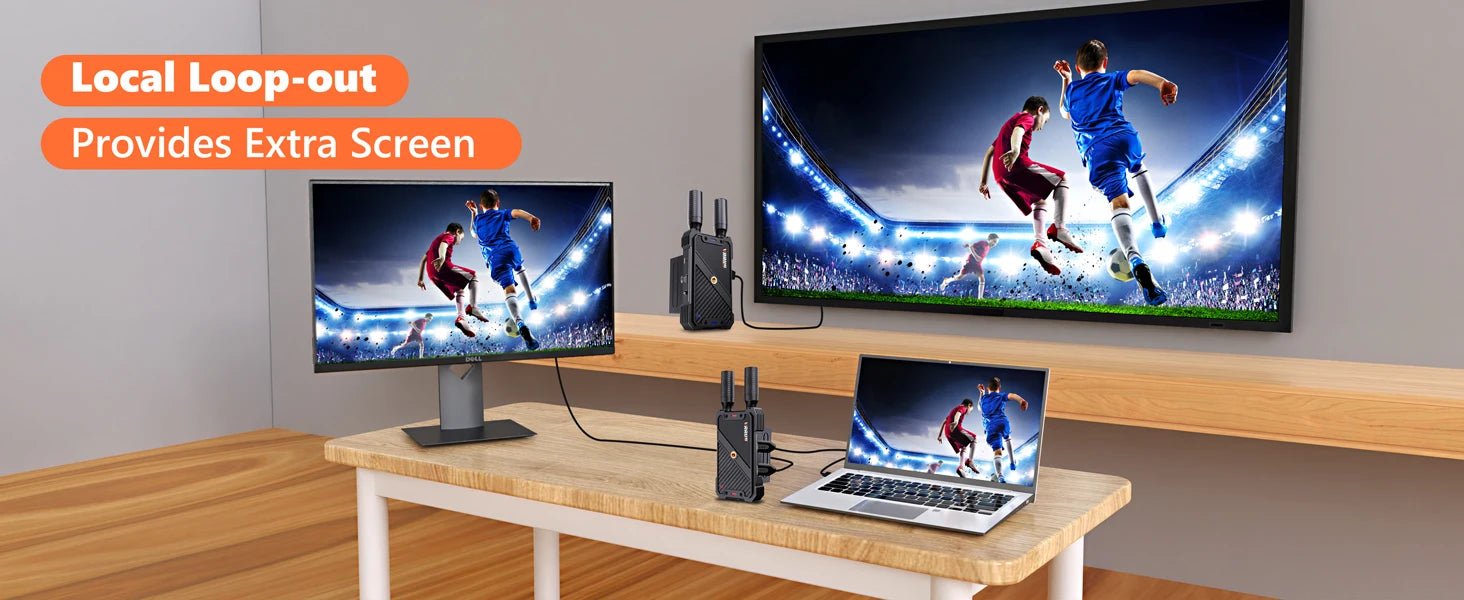

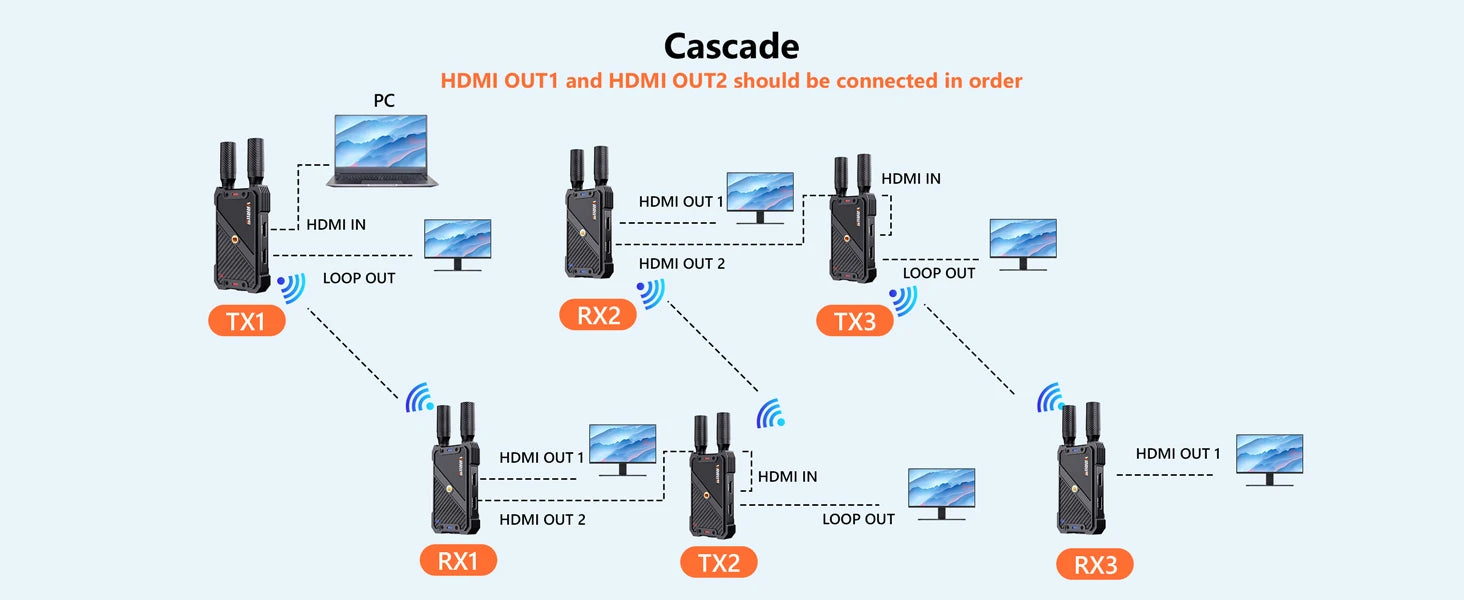

4. Loop out: Connect TX to the monitor via HDMI cable to loop out.
Attention
If you find that the product does not work properly, or if you need to add an additional receiver (RX), follow the instructions below to re-pair it for use!
1.Power the TX and RX.
2.Observe that the green link light will on.
3.Connect the HDMI IN port on TX and HDMI OUT 1 port on RX with an HDMI cable.
4.After pairing sucessfully, both the green light on TX andRX will flash.Otherwise, the pairing fails.
5.After completing the pairing, please disconnect the power source of them and reconned for normal use.
NOTE:
If pairing fails,please reset the transmitter and receiver and re-powered them, then re-plug in the HDMI cable and try the pairing steps again.

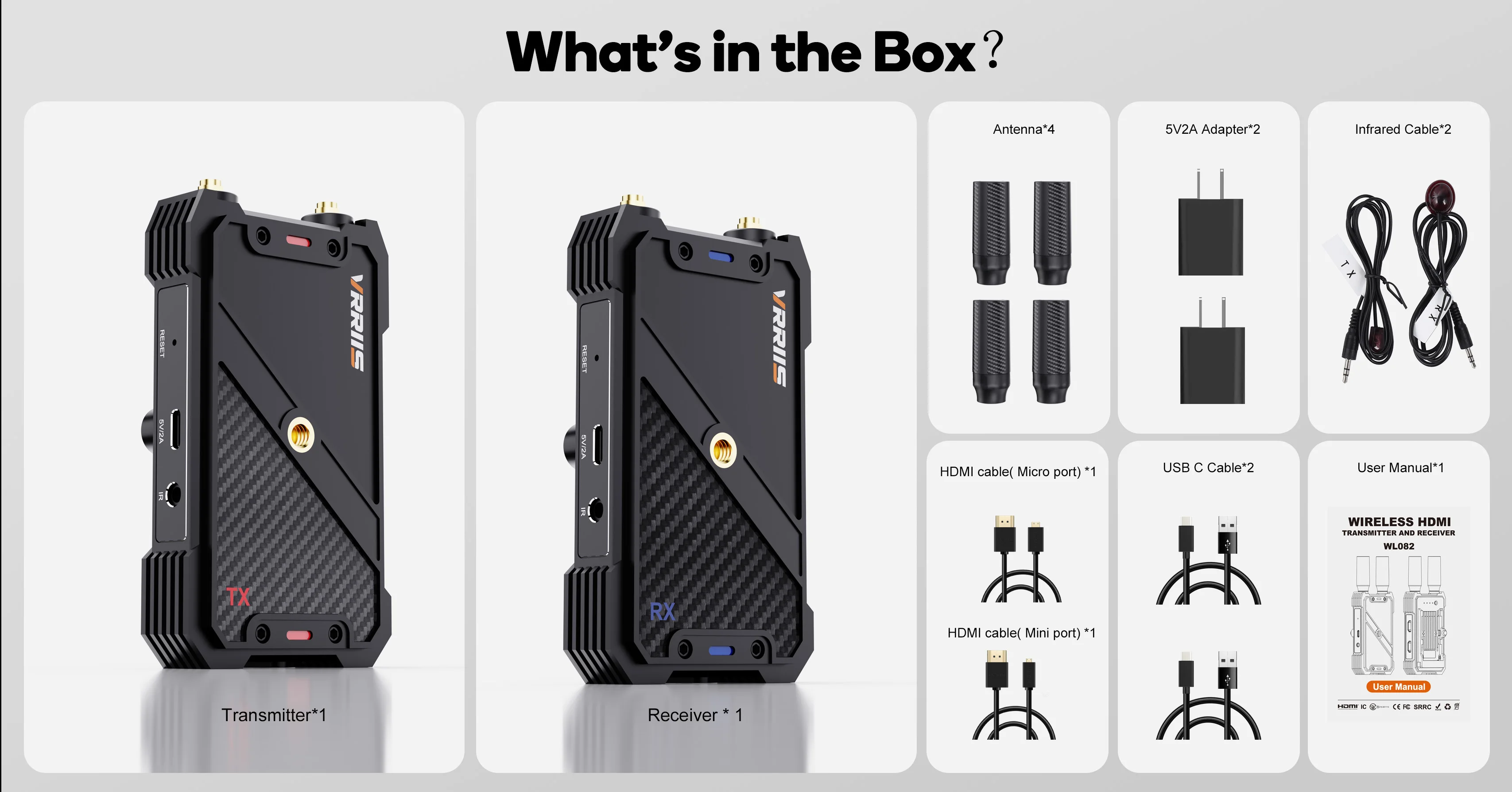

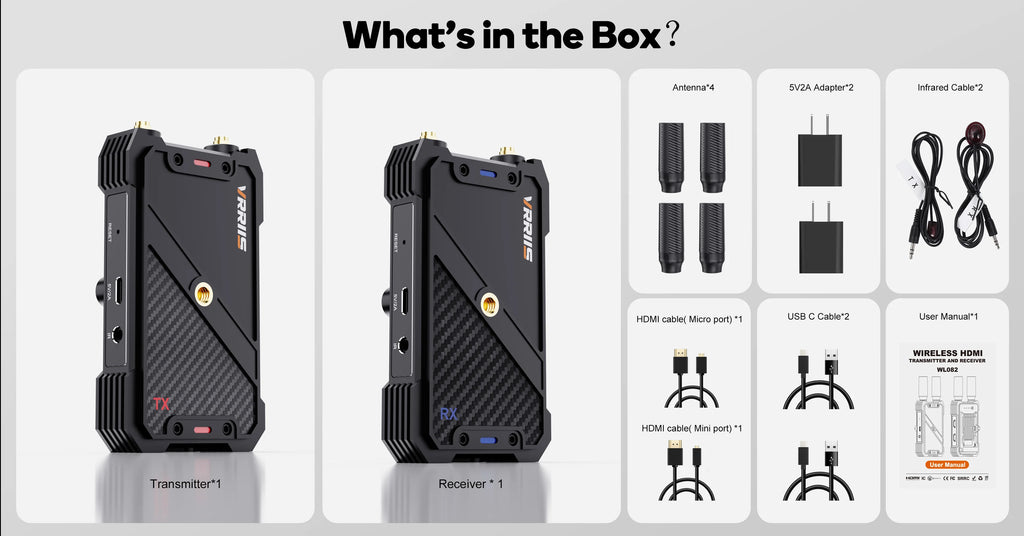

Package List
1TX 1RX to (234RX) Packing List
400 meters wireless transmitter * 1
400 meter wireless receiver * 1, 2, 3, 4
Antenna * 4, 6, 8, 10
5V2A Power Adapter * 2, 3, 4, 5
USB Power Cord * 2, 3, 4, 5

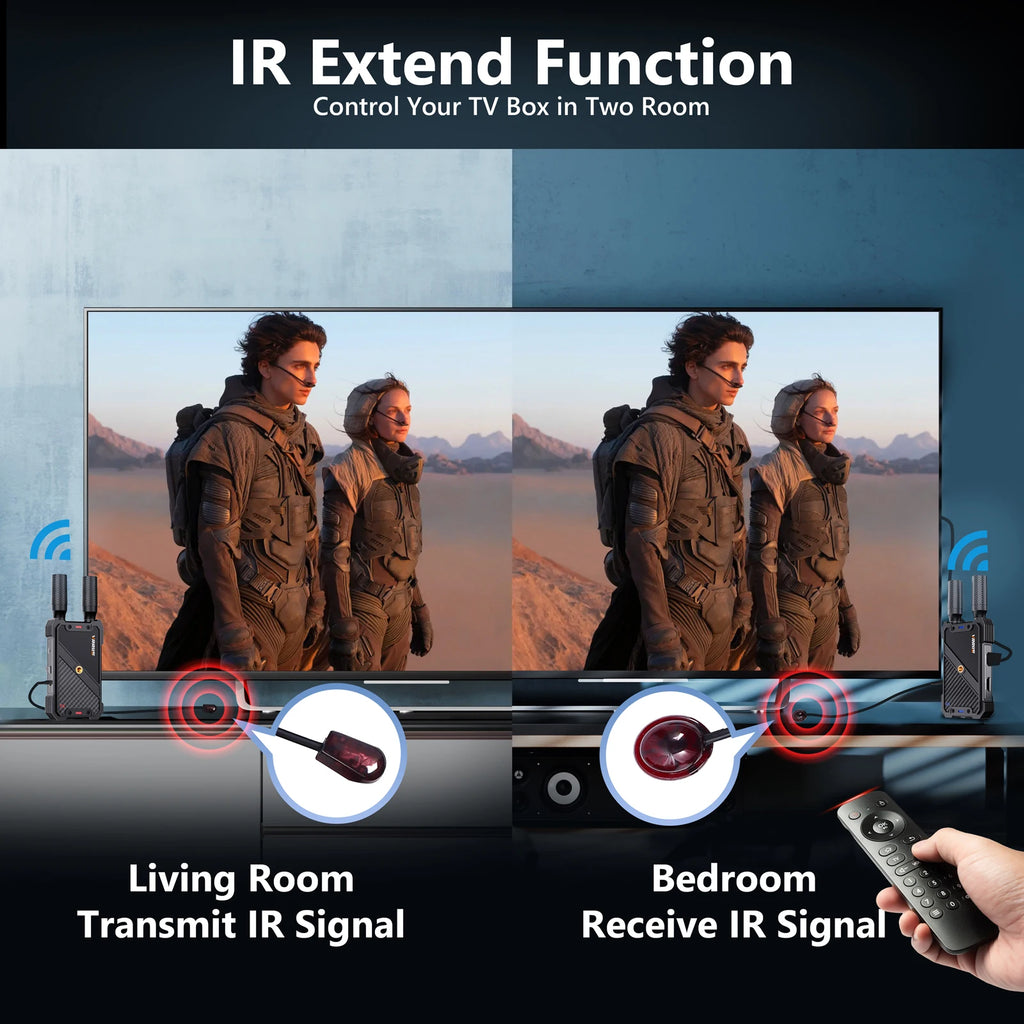

Infrared Cable * 2, 3, 4, 5
User manual * 1

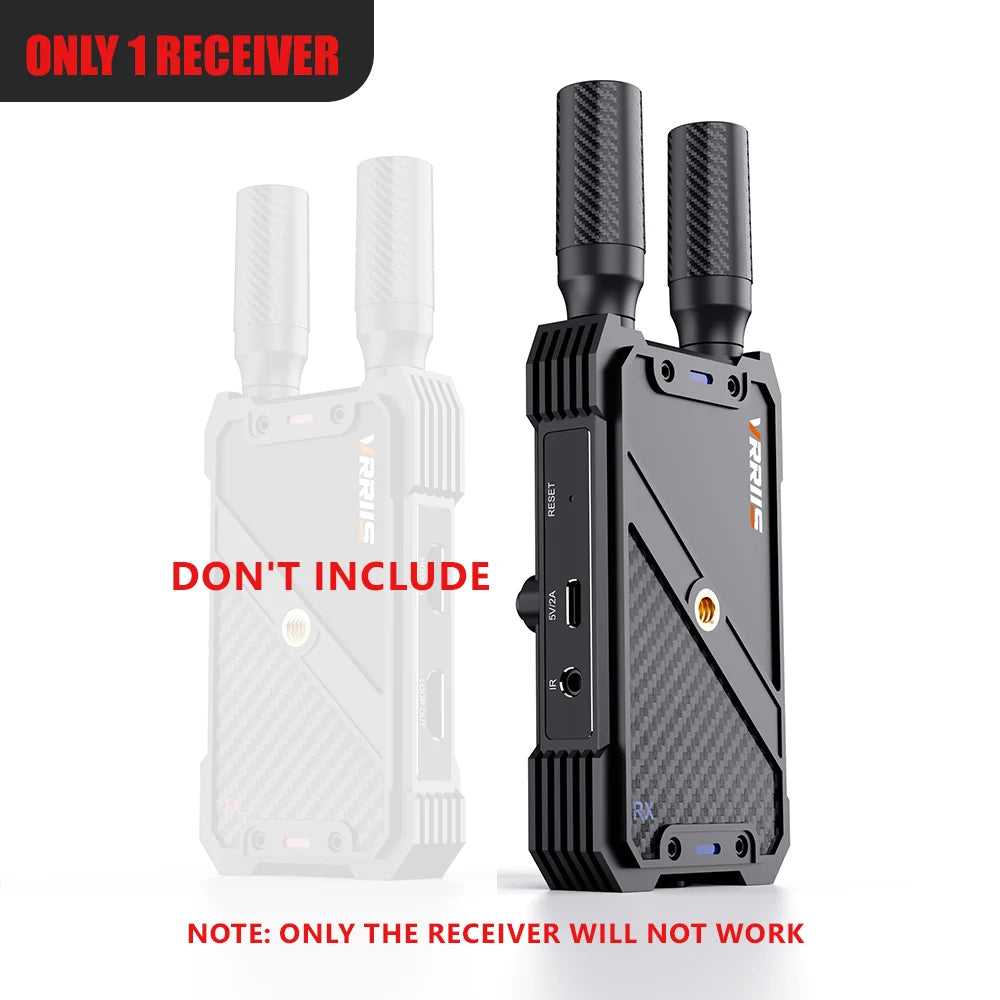

Only 1 Receiver Packing List
400 meters wireless receiver * 1
Antenna * 2
5V2A power adapter * 1
USB power cable * 1
Infrared cable * 1
User's Manual * 1
Only 1 Transmitter Packing List
400 meters wireless transmitter * 1
Antenna * 2
5V2A power adapter * 1
USB power cable * 1
Infrared cable * 1
User's Manual * 1
Note:
We will send you the correct product based on the option you purchased.
“Receiver only” does not include a transmitter, if you purchase this
option, you will only receive the receiver, no transmitter.
More powerful 1080P wireless transmitter and receiver
Packing List
